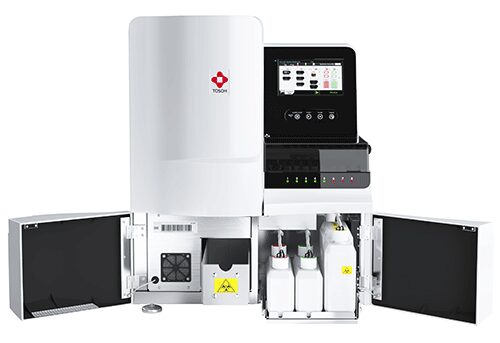

Introduction AIA-CL300
The AIA-CL300 is the flexible instrument responding to customers’ needs. Various pathologies can be precisely analysed with the AIA-CL300.
Like all other Tosoh AIA-CL automated immunoassay analysers, the AIA-CL300 utilises the unique CL-AIA Pack twin cup format. With a throughput of up to 30 results per hour, first result within 15 minutes for most assays, this innovative desktop automatic analyser meets the needs from small to large laboratories, to perform routine analysis, cover emergency use, run specific pathologies and esoteric tests. The AIA-CL300 benefits from the excellence and the unique technology of the AIA-CL range which have already made their proof in terms of ease of use, reliability, and analytical performance
Specifications
Methods | |
Assay principle | CLEIA |
Reagent type | AIA-CL Twin cup |
Available IVD reagents | > 50 assays |
Test principle | 1 CL AIA-PACK® cup = 1 test |
Immunochemical determination | Entirely inside CL AIA-PACK |
Signal detection | Substrate (DIFURAT®) + Enhancer |
Processing method | Automated continuous random access |
Capacity | |
Time to first result | Approx. 15 minutes |
Processing capacity | Max. 30 tests/hour |
Number of analytes per sample | Max. 8 |
Sample volume | 5 – 50 μL |
Sample pre and post-dilution | Auto (4 to 625x) |
Sample pretreatment | Auto |
Reagent rack | Sample assy Max to 24 cups |
Calibration assay Max 30 cups | |
Washer and diluent | 750 mL tank (manual preparation) |
Substrate and enhancer | Max. 3 cups (11 tests/cup) |
Tip rack | Max. 96 tips |
Power supply input/consumption | 100 to 240 V AC, 50/60 Hz / 300 VA |
Barcode readers | Internal and external (handheld) |
Operating environment | 15-30 o C, 40-80% R.H., up to 2000m alt. |
External communication | RS-232C, USBs, RJ45/LAN |
